2007-2021 Tundra 5.7L DW300 340LPH In-Tank Fuel Pump

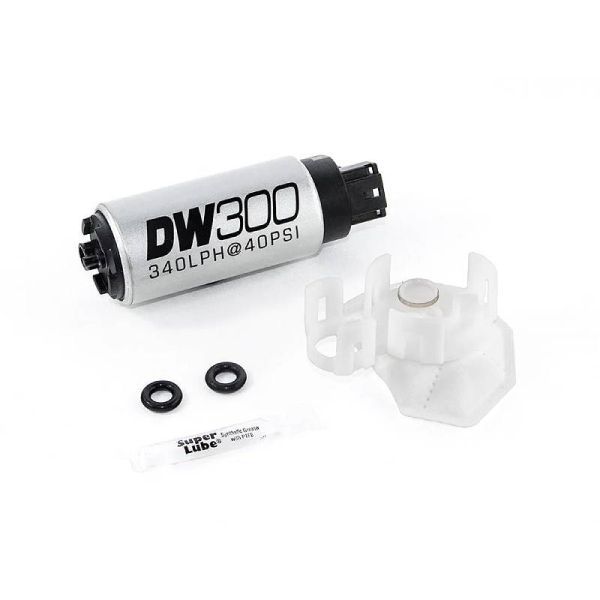

2007-2021 Toyota Tundra 5.7L, DW300, 340LPH In Tank Fuel Pump by Deatschwerks

The 340lph DW300c offers the highest flow available in a compact fitment pump. The compact fitment allows drop-in fitment into the 2007-2021 Toyota Tundra. Quiet operation and pulse width modulation compatibility are delivered via the turbine impeller and computer balanced armature. E85 compatibility is built in via the carbon commutators and a fully encapsulated armature. All DW fuel pumps are backed by a 3-yr no fault warranty.

Specifications
Weight: 10.2 oz (290grams)
External Materials: Electroplated Steel
Inlet Fitting: 7.7mm ID, 11.0mm OD
Outlet Fitting: 5/16' Hose Clamp
PRV Activation: 100 psi
Impeller Design: Single Scroll Composite Turbine
Connector Terminal: Spade Pos/Neg
Min Voltage Input: 6 Volts
Max Voltage Input: 18 Volts
Current Draw 40psi: 11.7 amps (13.5v)

*To ensure maximum voltage at the pump, a 12-gauge hardwire kit is strongly recommended for optimum performance
