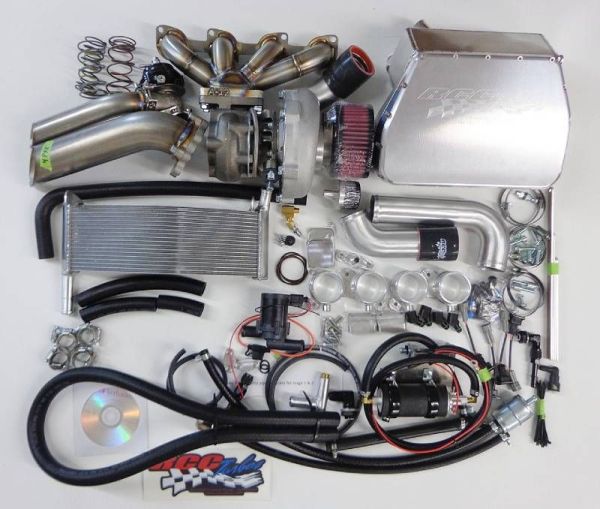

2022+ Hayabusa Stage 2 RCC ULTRA Turbo Kit

Gen 3 Hayabusa Stage Two ULTRA Turbo Kit by RCC Turbo

• Custom Garrett 50 trim turbo with TD Racing compressor cover, supports over 440hp
• Billet throttle body adapters and billet fuel rail and larger upper injectors
• 38 mm MVS Tial wastegate (external)
• 304 grade stainless steel header and flanges
• Braided oil feed line and fittings
• Oil return line and fittings
• New in-line fuel pump
• 1:1 fuel pressure regulator
• Fuel lines for the fuel system
• Billet aluminum liq/air intercooled airbox
• Heat exchanger with lines fittings and clamps
• Water pump
• Mandrel bent aluminum charge pipes
• Crankcase vent filter
• High flow air filter
• All vacuum lines, connectors, hose clamps, and fittings.
• Installation CD

Note: A standalone ECU is required, we recommend the MAXX ECU Sport Package from Boost By Smith, the ecu package can be ordered through us as well.

Due to the high compression ratio of the Gen 3 hayabusa and the light valve spring pressures, we recommend only running 4 psi of boost as a bolt on kit. This system will make 280 Hp on pump fuel without any engine work. For the customer that wants more power out of their Gen 3 we recommend installing turbo pistons, and heavier valve springs.

It fits inside stock body work for a very stealthy look. This system can be upgraded to over 440 HP by doing some engine work. No more turbo upgrades to be purchased.

This is the ultimate street/strip kit, the liq/air intercooler on this kit will allow you to safely run up to 380-400hp on pump fuel, and it will make a very efficient 440hp on race fuel. If you are looking for the ultimate turbo kit, this is it!

All workmanship comes with a 2 year warranty ----ie. cracking pipes or fittings
Turbo unit comes with a 2 year warranty
Fuel pump and regulator come with a 2 year warranty

BOV option - $469.00

Maxx Plug and Pay ecu - $3300.00

Turbo Packages:

Good: Fuel Pressure, RIFE IAT,(1) 3 port valve for boost control - $315.00

Better: Fuel/Oil Pressure, RIFE IAT,(1) 3 port valve for boost control - $515.00

Best: Fuel/Oil, Waste gate, RIFE IAT,(1) billet dual valve boost control - $725.00

Additional add ons:

Fuel pressure 100 psi - $145.00

Oil pressure 150 psi - $145.00

Oil pres. remote mount - $90.00

Wastegate pressure 100 psi - $145.00

Intake Air Temp for Turbo Bike - $110.00

Oil Temperature Sensor - $110.00

Laser Ride Height - $575.00

FlexFuel sensor over CAN - $200.00

Shock Travel, no mounting bracket - $200.00

Tire temp, no mounting bracket - $200.00

Flex fuel sensor - $200.00

Boost control solenoid options if you did not select a package:

Single MAC valve (basic boost control only) - $85.00

Dual MAC valve (closed loop control) - $175.00

Bullet valve dual controller - $275.00
