581200 Manley Turbo Tuff Pistons for 2JZ-GTE

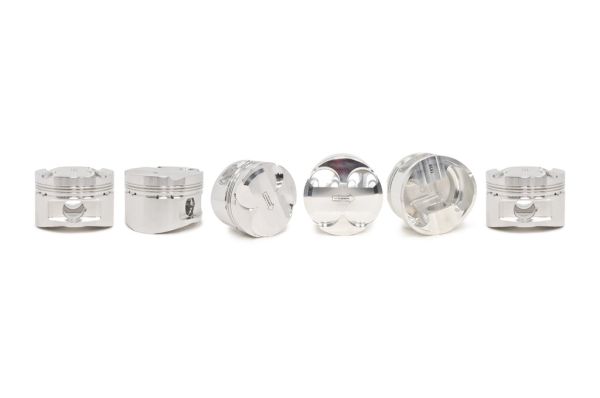

Name: 581200 Manley Turbo Tuff Pistons for 2JZ-GTE
Brand: MANLEYPISTONS
SKU: STM12083
Price: 901 EUR
Availability: InStock

SKU

STM12083

Skip to the end of the images gallery

Skip to the beginning of the images gallery

-16%

Special Price €901.00 was €1,071.84

In stock

Matched Set of 6 (581200-6)|Single Piston (581200-1)

Category: Car Brands

Special Offers

Details

Manley Pistons are sold individually or as a set of 6 with wrist pins, rings and spiral locks. Fits 2JZ-GTE 1993-1998 Toyota Supra. 86.75mm +0.75mm Bore, 9.0:1 compression.

Vehicle Fitment:
1993-1998 Toyota Supra MK4 2JZ-GTE

Part Numbers:	581200-6 (Matched Set of 6) 581200-1 (Single Piston)
Pin:	Standard Pin 0.250' Wall x 2.250' (Premium Chrome Moly) .866' / 22mm Pin
Bore Size:	86.75mm (.030' Oversize)
Stroke:	90mm (3.2L Stroker)
Dome Volume:	-4 cc
Cylinder Head cc:	45 cc
Compression Ratio:	9.0:1
Ring Set:	46855-06

Manley Platinum Series Pistons:
• Moly Coated Skirts
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035' measured .850' from the bottom of the oil ring
• Wrist Pins are 2.250' long (23mm diameter)

Turbo Tuff Benefits:
• Vertical gas ports designed for high HP race engines
• Turbo Tuff Wrist Pin
