605000C-4 Manley Pistons 4G63 6-Bolt

Name: 605000C-4 Manley Pistons 4G63 6-Bolt
Brand: MANLEYPISTONS
SKU: STM5633
Price: 570 EUR
Availability: InStock

SKU

STM5633

Skip to the end of the images gallery

Skip to the beginning of the images gallery

-16%

Special Price €570.00 was €678.86

In stock

Category: Car Brands

Special Offers

Details

Manley Pistons are sold as a set of 4 with wrist pins, rings and spiral locks.

Vehicle Fitment:
6-Bolt 4G63 1G DSM
1990-1992.5 Eclipse GST/GSX
1990-1992.5 Talon TSi
1990-1992.5 Laser RS
1991-1992 Galant VR4

Piston Specs:

Part Number:	605000C‑4
Pin	Standard Pin .150' Wall x 2.250' (Premium Chrome Moly) .827' / 21mm
Bore Size	85 mm (Standard Bore)
Rod Length	150 mm
Stroke:	88mm Standard Stroke (2.0L)
Comp Distance:	1.375'
Dome Volume:	-12 cc
DSM Head:	47 cc
Compression Ratio	8.5:1 CR
Piston Type:	Dish
Weight	340 Grams
Ring Set	46850‑4

Manley Platinum Series Pistons:
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035' measured 1.100' from the bottom of the oil ring

Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Spiral Locks

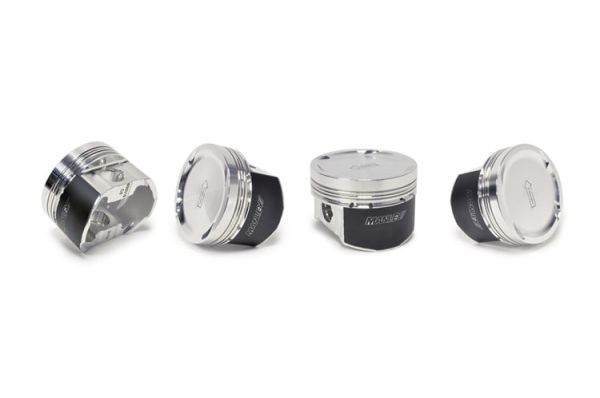

Images:
Pistons will vary by application. Images are for reference.
