606100C-4 Manley Pistons 4G63 7-Bolt

Name: 606100C-4 Manley Pistons 4G63 7-Bolt
Brand: MANLEYPISTONS
SKU: STM5658
Price: 570 EUR
Availability: InStock

SKU

STM5658

Skip to the end of the images gallery

Skip to the beginning of the images gallery

-16%

Special Price €570.00 was €678.86

In stock

Category: Car Brands

Special Offers

Details

Manley Pistons are sold as a set of 4 with wrist pins, rings and spiral locks.

Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS

Piston Specs:

Part Number:	606100C‑4
Pin:	Standard Pin .150' Wall x 2.250' (Premium Chrome Moly) .866' / 22mm Pin
Bore Size:	85 mm (Standard Bore)
Rod Length:	150 mm
Stroke:	88mm Standard Stroke (2.0L)
Comp Distance:	1.375'
Dome Volume:	-8 cc
Cylinder Head cc:	47 cc for DSM 43 cc for EVO
Compression Ratio:	9.0:1 for DSM 9.5:1 for EVO
Piston Type:	Dish
Weight:	342 Grams
Ring Set:	46850‑4

Manley Platinum Series Pistons:
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035' measured 1.100' from the bottom of the oil ring

Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Spiral Locks

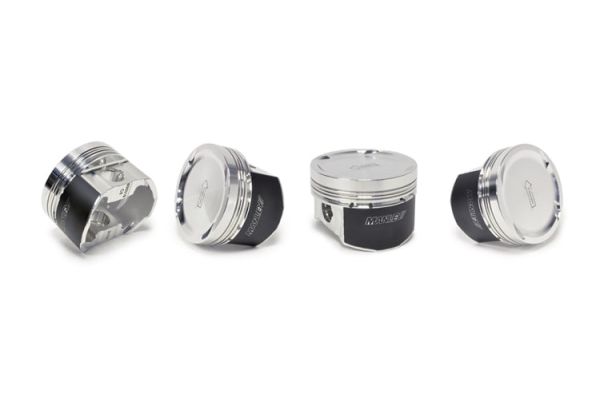

Images:
Pistons will vary by application. Images are for reference.
