ATP Garrett GTX2967R Drop-In Turbo Upgrade (560HP)

ATP Garrett GTX2967R - SR20DET Drop-In Turbo Upgrade for 1989-1998 Nissan 240SX - GRT-TBO-509

PRODUCT DESCRIPTION:

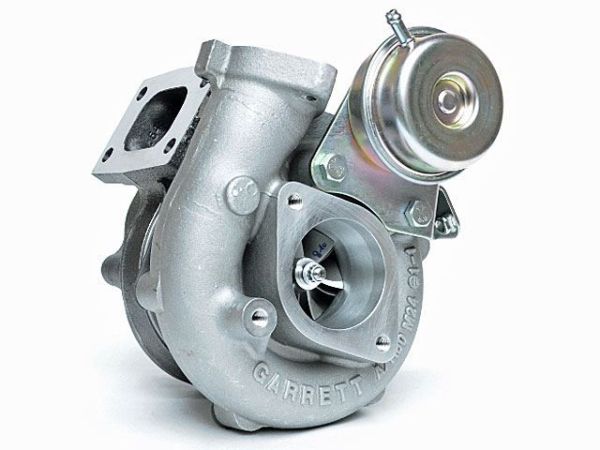

New GTX2967R dual ball bearing turbo for Nissan SR20DET platform. Direct drop-in for Nissan SR20DET platforms equipped with an original GT2560R.

Includes internally gated T25 flanged turbine housing (available in either .64 A/R or .86 A/R) and internal wastegate actuator (12 to 14PSI).

The GTX2967R features an ultra high flow compressor wheel and Garrett 10-Blade technology. 560HP potential flow.

PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 49.7mm
* Compressor Wheel Exducer: 67.4mm
* Compressor Wheel Trim: 55
* Turbine Wheel Inducer: 56.5mm
* Turbine Wheel Exducer: 51.8mm
* Turbine Wheel Trim: 84
* Nissan SR20DET style compressor housing (2 Bolt Inlet Flange and 3 Bolt Outlet Flange).
* Internal Wastegate Actuator (12 to 14PSI)

TURBINE HOUSING OPTIONS:
* T25 Inlet, 5 Bolt Outlet, and internally gated (Available in .64 or .86 A/R)

APPLICATION NOTES:
* Uses same oil and coolant fittings as the standard GT28, GT30, and GTX35 series turbochargers

APPLICABLE GARRETT PART NUMBERS:
* 836041-5001S
* 836041-1
* 836013-0001
