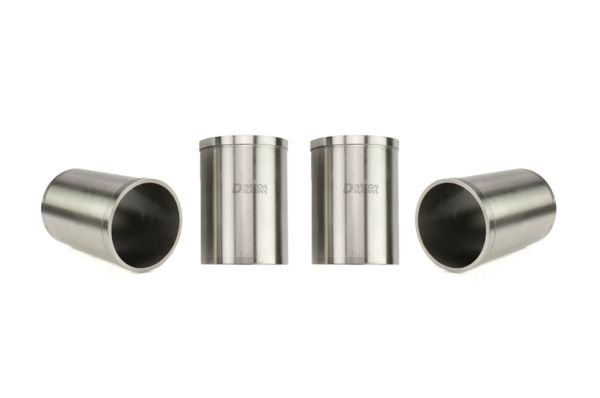

Darton Dry Sleeves for Honda & Acura

SKU
STM7486
-16%
Special Price €260.00 was €309.12
In stock

D16 No Flange (200-010)|B16 No Flange (200-012)|B18 No Flange (200-014)|F22A No Flange (200-016)|H22/H23 No Flange (200-018)|D16 With Flange (300-010)|D17 With Flange (300-011)|B16 With Flange (300-012)|B18 With Flange (300-014)|F22A With Flange (300-016)|H22/H23 With Flange (300-018)|K20 With Flange (300-019)|K24 & F20C/F22C With Flange (300-020)

Darton Dry sleeves for the Honda and Acura engines replace your factory cylinder liners with a stronger, more durable and longer lasting surface that can hold more power and may be bored further than stock.

A 'Dry Sleeve' means that the sleeve does not contain water/ or coolant passges bored through the top flange. This solid design provides a more rigid structure to prevent warping and sleeve expansion.

Darton sleeves must be finished at the machine shop and honed to the exact specs of the pistons going into them.

Purchase Includes:
A full set of 4 engine sleeves. Please choose your sleeves carefully in the purchase menu and review all information. If you are unsure, please discuss with your engine builder before purchase. Some options are available with or without the flange.



DRY SLEEVES NO FLANGE
Part Number: Bore: OD: Wall: Length: Flange Thickness: Flange Diameter:
D16 (No Flange)
200-010 2.940 3.235 0.148 5.110 - -
B16 (No Flange)
200-012 3.180 3.465 0.143 4.860 - -
B18 (No Flange)
200-014 3.180 3.465 0.143 5.110 - -
F22A (No Flange)
200-016 3.330 3.640 0.155 5.520 - -
ALL H22 or H23 (No Flange)
200-018 3.410 3.640 0.115 5.520 - -
DRY SLEEVES WITH FLANGE
Part Number: Bore: OD: Wall: Length: Flange Thickness: Flange Diameter:
D16 (With Flange)
300-010 2.940 3.250 0.155 5.400 0.375 3.340
D17 (With Flange)
300-011 2.940 3.250 0.155 5.275 0.375 3.340
B16 (With Flange)
300-012 3.180 3.475 0.148 5.250 0.375 3.580
B18 (With Flange)
300-014 3.180 3.475 0.148 5.500 0.375 3.580
F22A (With Flange)
300-016 3.335 3.650 0.158 5.500 0.375 3.750
ALL H22 or H23 (With Flange)
300-018 3.415 3.650 0.118 5.500 0.375 3.750
K20 (With Flange)
300-019 3.370 3.650 0.140 5.200 0.375 3.750
K24 & F20C/F22C (With Flange)
300-020 3.410 3.650 0.120 5.800 0.375 3.750

SKUSTM7486
SellerSTM-Tuned
ManufacturerDarton
OEM NumberDAR-200-010 (Set of 4)
