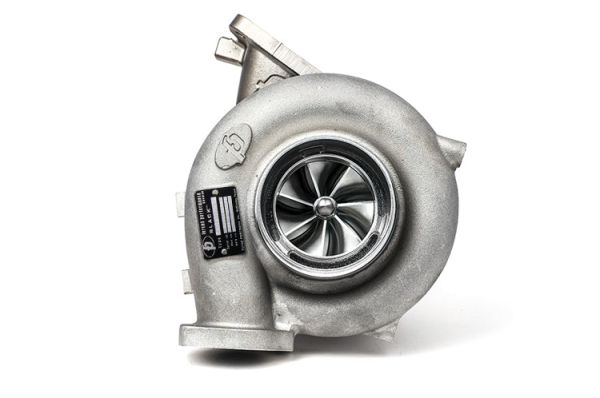

FP Black Evo IX Turbo

SKU
STM0811
-16%
Special Price €1,512.00 was €1,799.00
In stock

Journal Bearing|Ball Bearing|Stainless Housing (No Wastegate)|MHI Housing (No Actuator)|MHI Housing (18 PSI Actuator)|MHI Housing (25 PSI Actuator)|No Coating|Add Coating

The FP Black turbo has long been the benchmark in the stock appearing Evo IX market propelling the platform into the low 9's and into and beyond the 600WHP territory all while passing itself off as a stock turbo.

Compatible with these models:
Mitsubishi Evolution IV V VI VII VIII IX
(Evo 4/5/6/7/8/9 4G63 Turbo)

Please review all options before purchase!
There is a lot of information on this page. These turbos are available with the journal bearing or ball bearing CHRA and with either the factory-style, bolt-on Mitsubishi housing or the new stainless FP housing which will need a and special downpipe/o2. The MHI housing will work with factory-style o2/downpipe and uses an Evo 9 style actuator. The stock Evo 8 actuator will not work.

Shipping Time: (8-10 Weeks)
FP Turbos are built to your spec. These are not in stock. Typical wait time has been 8-10 weeks.

For Evo 4-8 Install:
The FP Turbos are based on the Evo 9 platform. If you have an Evo 4-8, you'll need the Evo 9 j-pipe and water lines. Please check below for which oil feed line you'll need.
Recommended for install: .

FP Part Numbers:
2005060, 2005062, 2005064, 2005066, 2005070, 2005072, 2005074, 2005076

What's the difference between the MHI and Stainless Turbine Housing?

FP MHI Housing FP SS Housing

MITSUBISHI HOUSING (MHI)

FP STAINLESS HOUSING (SS)

Bolts to stock exhaust manifold or aftermarket factory-placement manifold with Mitsu flange. Bolts to stock exhaust manifold or aftermarket factory-placement manifold with Mitsu flange.
Fits factory o2 housing and downpipe or any stock placement aftermarket o2 housing and downpipe combo. Does NOT fit with any factory-style o2 housing or downpipe.
Uses Evo 9 Style Internal Wastegate.
(Available with purchase.)
Uses
(Not included.)
Recommended Options for Install:





Recommended Options for Install:





Manifold Gasket (Not Included)



Manifold Gasket (Not Included)







What's the difference between Journal Bearing and Ball Bearing?

FP MHI Housing

FP Black:

Journal Bearing:

Ball Bearing:

CHRA: FP Journal Bearing Xona Rotor Dual Ceramic BB
Oil Line: NOT Included. Required for Install.
NOT compatible with stock feed lines.
FP JB Feed Line is (.)
NOT Included.
Compatible with stock feed lines!
(Optional) FP SS Feed Line is (.)
Compressor Wheel: 82HTZ 82HTZ
Flow Rating: 71 lb Per Minute 71 lb Per Minute
Compressor Wheel Inducer: 59.1mm 59.1mm
Compressor Wheel Exducer: 82mm 82mm
Turbine Wheel Inducer: 67.3mm 67.3mm
Turbine Wheel Exducer: 58.8mm 58.8mm
Compressor Housing: 84mm Flow Advancement Port Cover 84mm Flow Advancement Port Cover




Black Ceramic Coating (+$100):

FP Black Ceramic Coating
You can have your MHI or Stainless housing treated with a black ceramic coating to help keep the heat in, keeping your engine bay cooler and it will look amazing!
SKUSTM0811
SellerSTM-Tuned
ManufacturerForced Performance
OEM NumberFP-BLACK-JB-EVO9-1
