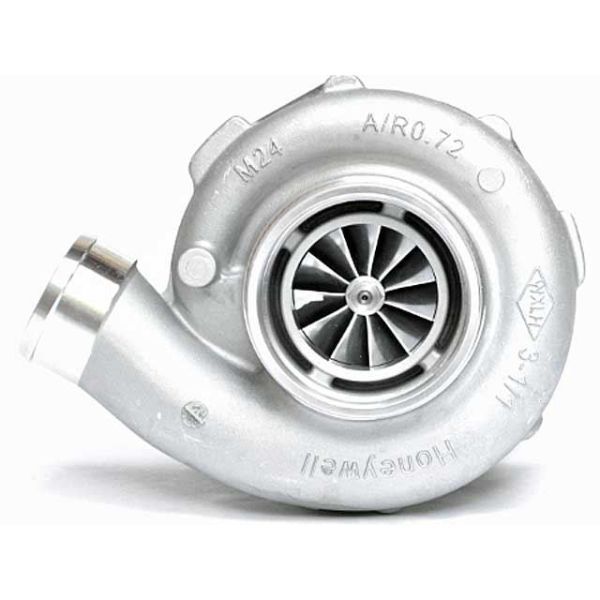

Garrett GTX4088R Dual Ball Bearing Turbo

Garrett GTX4088R Dual Ball Bearing Turbo

PRODUCT DESCRIPTION:
New GTX4088R dual ball bearing turbo with ultra high flow compressor wheel and featuring Garrett 11-Blade technology. 850HP potential flow.

** Includes Turbine Housing. Choose from T4 Inlet, T3 Inlet, or V-band Inlet. 3' V-band Outlet.

PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 65.0mm
* Compressor Wheel Exducer: 88.4mm
* Compressor Wheel Trim: 54
* Turbine Wheel Inducer: 77.0mm
* Turbine Wheel Exducer: 68.0mm
* Turbine Wheel Trim: 78
* Standard compressor housing is T04H Frame with 4' inlet, 2.5' outlet, and built-in & machined anti-surge.

TURBINE HOUSING OPTIONS:
* T4 Inlet, 3' V-band Outlet (.85, .95, or 1.06 A/R)
* T3 Inlet, 3' V-band Outlet (.89, .99, or 1.11 A/R)
* V-band Inlet optional, 3' V-band Outlet. Available in .89, .99, or 1.11 A/R.

APPLICATION NOTES:
* Uses same oil and coolant fittings as the standard GT4088R turbo

Applicable Garrett Part Numbers: 825614-5002S, 825614-5004S, 825614-5005S, 803614-2, 803614-4, 803614-5, 751450-0021, 751450-21

Normally In Stock, Shipping Daily!

TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
