GSC 4G63 Conical High Pressure Spring Kit (5079)

SKU
STM7349
-16%
Special Price €397.00 was €472.30
In stock

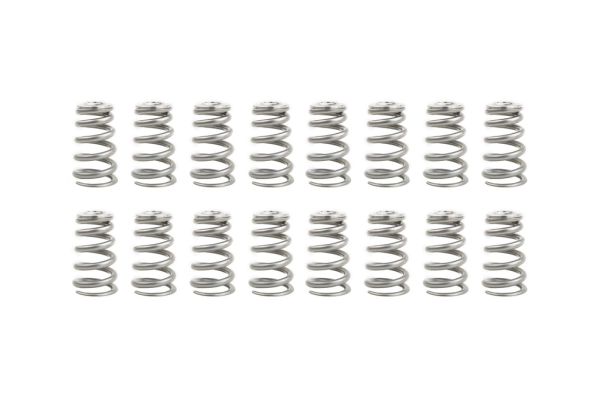

The GSC Power-Division high-pressure conical valve spring kit for Evo and DSM includes 16 titanium retainers and 16 conical valve springs. Designed to work with the OEM spring seat or . Able to use NEW OEM valve spring keepers or the keeper kit. No need for special aftermarket locks that have the potential of being the wrong angle.

Vehicle Fitment:
Mitsubishi 4G63
1992-2006 Evolution I-IX
1990-1999 Eclipse GST/GSX
1990-1998 Talon TSi
1990-1994 Laser RS
1991-1992 Galant VR4

IN: 114 lbs @ 1.570' / EX: 120 lbs @ 1.550' install height
IN: 256 lbs @ 12.1mm lift / EX: 260lbs @ 12.0mm lift

Includes:
(16) Conical Valve Springs
(16) Titanium Retainers

More Info:
Conical springs allow for the use of a smaller, lighter retainer and have a varying spring rate allowing for higher RPM and more valve control.

Part Number: GSC5079
Springs: HP Beehive
Retainers: Titanium
Coil Bind: 0.952'
Install Height: 1.570 / 1.550'
Seat Pressure: 114 /120 lbs
Open Pressure, 12.00mm Lift: 256 lbs @ 12.1mm lift
260lbs @ 12.0mm lift
Maximum Valve Lift: 0.538'
Max RPM: 10,500
Max Boost: 50 psi
Previous Beehive Part Number: 5057
SKUSTM7349
SellerSTM-Tuned
ManufacturerGSC
OEM NumberGSC-5079
