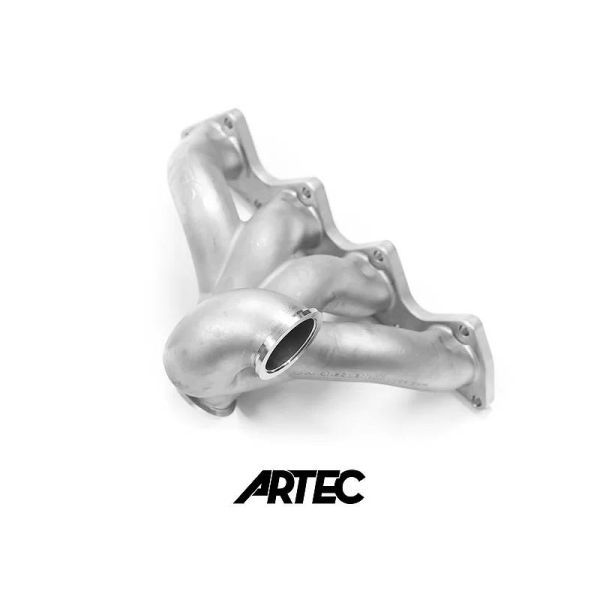

Honda B Series Bottom Mount V-Band Artec Turbo Manifold

Artec SS Low Mount Precision V-Band Turbo Manifold Honda B Series with MVR V-Band Wastegate Flange

Finally Artec gets to show off their new Honda B-Series V-Band (ac compatible) Turbo manifold.

They picked up a '95 model Del Sol with a B18 to develop their new line of B-Series products. The manifold is designed so you can run AC (with some modifications to the factory condenser and fan) as well as a proper air intake with air filter.

This design uses their universal V-Band system and is designed to use standard rotation turbos. So any Garrett G25 through to G35 or Precision up to a 6870. They also designed it around an Turbosmart Gen 5 45mm Hypergate wastegate , BUT the wastegate runner is designed to accept a 50mm if your setup requires it - just cut the 45mm flange off and weld the 50mm flange on.
