JMF Billet 4G63/4G64 Torque Plate for DSM/Evo

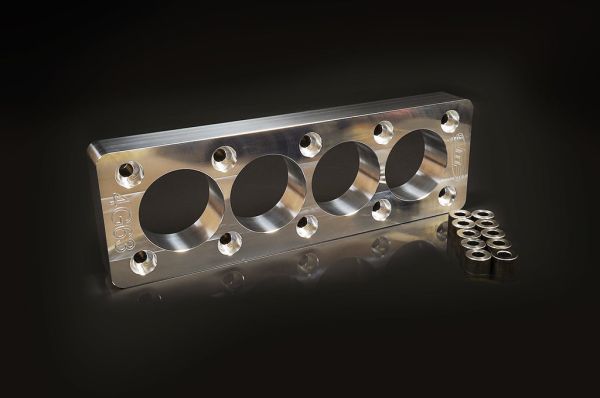

Anytime you bore a block, distortion will occur to the cylinders unless you have a honing/torque plate installed as a brace. The JMF 4G63 Torque Plate is CNC machined from 2' thick 6061 billet aluminum. The top and bottom sides are face milled to ensure absolute flatness of the plate. They are bored .060 over so that the plate can be used with 4G64 blocks as well. 4130 chrome-moly stud inserts are included to keep the plate from damage during the torque down process.

Vehicle Fitment:
4G63 & 4G64
1992-2006 Evolution I-IX
1990-1999 Eclipse GST/GSX
1990-1998 Talon TSi
1990-1994 Laser RS
1991-1993 Galant VR4

Approximate Weight:
12 pounds.

Shipping Times:
Usually ships in 1-3 days.
