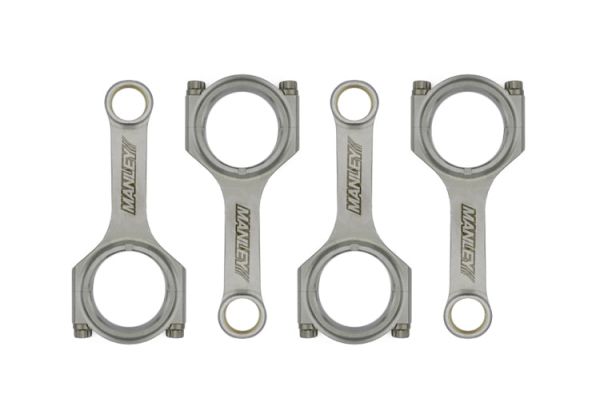

Manley H-Beam Steel Rods for 6-Bolt 4G63 DSM

Name: Manley H-Beam Steel Rods for 6-Bolt 4G63 DSM
Brand: Manley
SKU: STM1610
Price: 435 EUR
Availability: InStock

SKU

STM1610

Skip to the end of the images gallery

Skip to the beginning of the images gallery

-16%

Special Price €435.00 was €518.00

In stock

(14021-4) with 21mm Pin|(14002-4) with 22mm Pin

Category: Car Brands

Special Offers

Details

Manley Performance H-Beam Steel Rods for the 6-Bolt 4G63 are an economical option for street rebuilds and daily drivers. These rods are good to 600 crank horsepower. Includes a full set of 4 rods with Manley assembly lube.

Vehicle Fitment:
6-Bolt 4G63
1990-1992.5 Eclipse GST/GSX
1990-1992.5 Talon TSi
1990-1992.5 Laser RS
1991-1992 Galant VR4

Features:
• Manufactured from 4340 forgings
• Heat treated, stress relieved, shot peened and 100% individually magnafluxed
• Weight matched sets + 1.5 grams
• Cap fasteners are 3/8' ARP 2000
• Flywheel horsepower range is 600+

Includes:
Set of 4 Rods
Manley Lube

Manley H-Beam Steel Rods for 6-Bolt 4G63 DSM:
Part Number	Application	Center to Center	Big End Bore	Big End Width	Pin Diameter	Pin Bore	Grams
14021‑4	6-Bolt 4G63	5.905'	1.890'	1.115'	.827' (21mm Pin)	.8281'	550
14021‑4	Notes: Recommended bearings to be used: ACL 4B1146/H or Clevite CB-1120AL
14002‑4	6-Bolt 4G63	5.905'	1.890'	1.115'	.866' (22mm Pin)	.8281'	550
14002‑4	Notes: Recommended bearings to be used: ACL 4B1146/H or Clevite CB-1120AL
