Manley H-Beam Steel Rods for 7-Bolt 4G63 DSM/Evo

Name: Manley H-Beam Steel Rods for 7-Bolt 4G63 DSM/Evo
Brand: Manley
SKU: STM0342
Price: 435 EUR
Availability: InStock

SKU

STM0342

Skip to the end of the images gallery

Skip to the beginning of the images gallery

-16%

Special Price €435.00 was €518.00

In stock

(14022-4) 150mm Rod Length|(14020-4) 156mm Rod Length

Category: Car Brands

Special Offers

Details

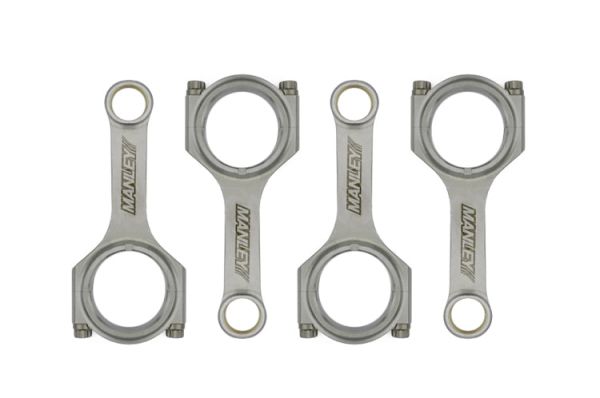

Manley Performance H-Beam Steel Rods for the 7-Bolt 4G63 Evolution, Eclipse, Talon, laser and GVR4 are an economical option for street rebuilds and daily drivers. These rods are good to 600 crank horsepower. Includes a full set of 4 rods with Manley assembly lube.

Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
1992.5-1992 Galant VR4

Features:
• Manufactured from 4340 forgings
• Heat treated, stress relieved, shot peened and 100% individually magnafluxed
• Weight matched sets + 1.5 grams
• Cap fasteners are 3/8' ARP 2000
• Flywheel horsepower range is 600+

Includes:
Set of 4 Rods
Manley Lube

Manley H-Beam Steel Rods for 7-Bolt 4G63 DSM/Evo:
Part Number	Application	Center to Center	Big End Bore	Big End Width	Pin Diameter	Pin Bore	Grams
14022‑4	7-Bolt 4G63	5.905'	1.890'	1.038'	.866' (22mm Pin)	.8671'	580
14022‑4	Notes: 150mm Rod Length. Recommended bearings to be used: ACL 4B1185/H or Clevite CB-1643P.
14020‑4	7-Bolt 4G63	6.142'	1.890'	1.038'	.866' (22mm Pin)	.8671'	545
14020‑4	Notes: 156mm Rod Length (.237 / 6mm Longer).
