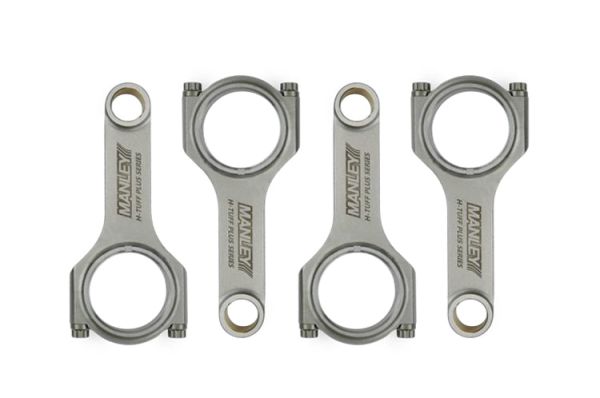

Manley H-Tuff Plus Steel Rods for 7-Bolt 4G63 DSM/Evo

Name: Manley H-Tuff Plus Steel Rods for 7-Bolt 4G63 DSM/Evo
Brand: Manley
SKU: STM5611
Price: 765 EUR
Availability: InStock

SKU

STM5611

Skip to the end of the images gallery

Skip to the beginning of the images gallery

-16%

Special Price €765.00 was €909.79

In stock

(15022R6-4) 150mm Rod Length|(15020R6-4) 156mm Rod Length

Category: Car Brands

Special Offers

Details

Manley Performance H-Tuff Plus Steel Rods for the 7-Bolt 4G63 Evolution, Eclipse, Talon, laser and GVR4 has a wider beam than the standard H-Beam rods. The H-Tuff Plus rods include the upgraded ARP 625+ rod bolts and are good to 950 crank horsepower. Includes a full set of 4 rods with Manley assembly lube.

Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
1992.5-1992 Galant VR4

Features:
• Manufactured from 4340 forgings
• Heat treated, stress relieved, shot peened and 100% individually magnafluxed
• Weight matched sets + 1.5 grams
• Cap fasteners are 3/8' ARP 625+ bolts.
• Flywheel horsepower range is 950

Includes:
Set of 4 Rods
Manley Lube

Manley H-Tuff Plus Steel Rods for 4G63 7-Bolt DSM/Evo:
Part Number	Application	Center to Center	Big End Bore	Big End Width	Pin Diameter	Pin Bore	Grams
15022R6‑4	7-Bolt 4G63	5.905'	1.890'	1.038'	.866' (22mm Pin)	.8671'	635
15022R6‑4	Notes: 150mm Rod Length. Recommended bearings to be used: ACL 4B1185/H or Clevite CB-1643P.
15020R6‑4	7-Bolt 4G63	6.142'	1.890'	1.038'	.866' (22mm Pin)	.8671'	635
15020R6‑4	Notes: 156mm Rod Length (.237 / 6mm Longer).
