PTE 5431 MFS Journal Bearing Turbo (500 HP)

Name: PTE 5431 MFS Journal Bearing Turbo (500 HP)
Brand: PTE
SKU: STM0704
Price: 735 EUR
Availability: InStock

SKU

STM0704

Skip to the end of the images gallery

Skip to the beginning of the images gallery

-16%

Special Price €735.00 was €874.99

In stock

E Cover T3 Inlet/4-Bolt Outlet .48 A/R (30402004069)|E Cover T3 Inlet/4-Bolt Outlet .63 A/R (30402004089)|E Cover T3 Inlet/4-Bolt Outlet .82 A/R (30402004109)|E Cover T3 Inlet/5-Bolt Outlet .48 A/R (30402004159)|E Cover T3 Inlet/5-Bolt Outlet with hole .48 A/R (30402004169)|E Cover T3 Inlet/5-Bolt Outlet .63 A/R (30402004179)|E Cover T3 Inlet/5-Bolt Outlet with hole .63 A/R (30402004189)

Category: Car Brands

Special Offers

Details

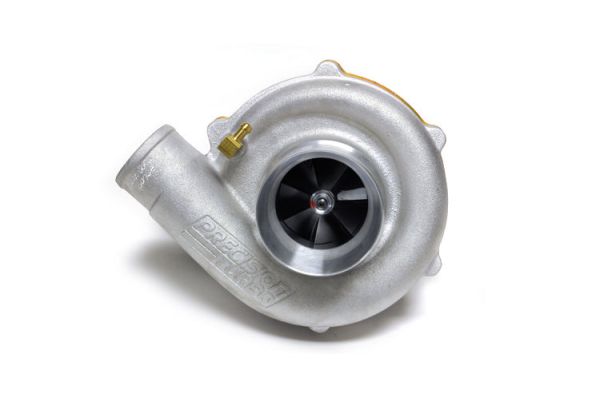

The PTE 5431 Turbo is rated for 500 HP with a journal bearing CHRA. Photos are for reference as each turbo can be configured differently. Please review all options for the compressor cover, exhaust housing inlet and outlet and A/R ratios.

Features:
• MFS (Machined From Solid) 54mm Inducer Compressor Wheel
• 57mm Exducer T31, 76 Trim Turbine Wheel
• 360° Journal Bearing System
• Rated for 385 HP
• PTE 'Entry Level Turbo'

Compressor Cover Options:
• E Cover (3.0' Inlet / 2.0' Outlet)

Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.

See more about the different PTE housing options, compressor covers and PTE videos to help you get your turbo built correctly!

PTE 5431 Turbo Options:

PTE Part Number	Compressor Cover	Exhaust Housing Inlet	Exhaust Housing Outlet	A/R
30402004069	E Cover	T3 Inlet	4-Bolt Outlet	.48
30402004089	E Cover	T3 Inlet	4-Bolt Outlet	.63
30402004109	E Cover	T3 Inlet	4-Bolt Outlet	.82
30402004159	E Cover	T3 Inlet	5-Bolt Outlet	.48
30402004169	E Cover	T3 Inlet	5-Bolt Outlet with Wastegate Hole	.48
30402004179	E Cover	T3 Inlet	5-Bolt Outlet	.63
30402004189	E Cover	T3 Inlet	5-Bolt Outlet with Wastegate Hole	.63
