PTE 5976 MFS Journal Bearing Turbo (620 HP)

Name: PTE 5976 MFS Journal Bearing Turbo (620 HP)
Brand: PTE
SKU: STM0707
Price: 735 EUR
Availability: InStock

SKU

STM0707

Skip to the end of the images gallery

Skip to the beginning of the images gallery

-16%

Special Price €735.00 was €874.99

In stock

E Cover T3 Inlet/4-Bolt Outlet .63 A/R (30802008089)|E Cover T3 Inlet/4-Bolt Outlet .82 A/R (30802008109)|E Cover T3 Inlet/5-Bolt Outlet .63 A/R (30802008179)|E Cover T3 Inlet/5-Bolt Outlet with hole .63 A/R (30802008189)|B Cover T3 Inlet/5-Bolt Outlet with hole .63 A/R (30801008189)|E Cover T4 Inlet/V-Band Outlet .58 A/R (30802008199)|E Cover T4 Inlet/V-Band Outlet .68 A/R (30802008209)|E Cover T4 Inlet/V-Band Outlet .81 A/R (30802008219)|E Cover T4 Inlet/V-Band Outlet .96 A/R (30802008229)

Category: Car Brands

Special Offers

Details

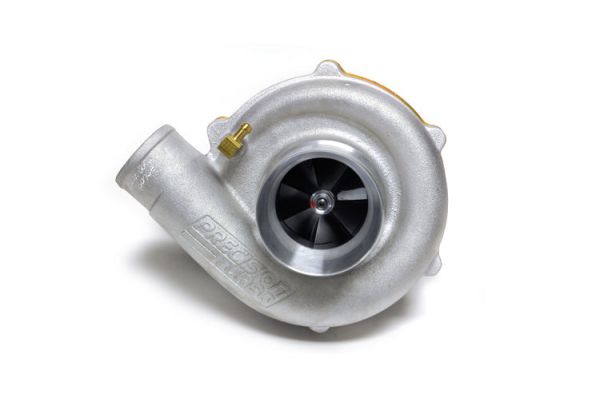

The PTE 5976 Turbo is rated for 620 HP with a journal bearing CHRA. Photos are for reference as each turbo can be configured differently. Please review all options for the compressor cover, exhaust housing inlet and outlet and A/R ratios.

Features:
• MFS (Machined From Solid) 59mm Inducer Compressor Wheel
• 64.56mm Exducer Turbine Wheel
• 360° Journal Bearing System
• Rated for 620 HP
• PTE 'Entry Level Turbo'

Compressor Cover Options:
• B Cover (2.8' Inlet / 2.0' Outlet)
• E Cover (3.0' Inlet / 2.0' Outlet)

Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.

See more about the different PTE housing options, compressor covers and PTE videos to help you get your turbo built correctly!

PTE 5976 Turbo Options:

PTE Part Number	Compressor Cover	Exhaust Housing Inlet	Exhaust Housing Outlet	A/R
30802008089	E Cover	T3 Inlet	4-Bolt Outlet	.63
30802008109	E Cover	T3 Inlet	4-Bolt Outlet	.82
30802008179	E Cover	T3 Inlet	5-Bolt Outlet	.63
30802008189	E Cover	T3 Inlet	5-Bolt Outlet with Wastegate Hole	.63
30801008189	B Cover	T3 Inlet	5-Bolt Outlet with Wastegate Hole	.63
30802008199	E Cover	T4 Inlet	V-Band Outlet	.58
30802008209	E Cover	T4 Inlet	V-Band Outlet	.68
30802008219	E Cover	T4 Inlet	V-Band Outlet	.81
30802008229	E Cover	T4 Inlet	V-Band Outlet	.96
