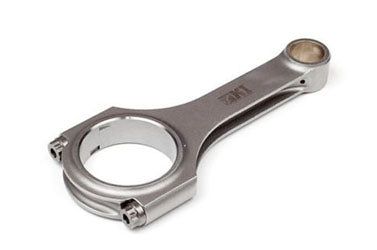

Scat Pro 6-Bolt 4G63 DSM H-Beam Connecting Rods

Fits these Applications:
6-Bolt 4G63 DSM
(1990-1992.5 Eclipse, Talon & Laser Turbo)

All SCAT H-Beam rods are forged from 4340 chromemoly steel and have superior bend and twist ratings. They are fully magnafluxed, stressed relieved and X-Rayed from both ends. SCAT also provides an extra oiling provision hole on the top of the rod allowing for better lubrication at high rpms.

Scat 4340 Forged H-Beam Connecting Rods with ARP2000 3/8' Cap Screws

The Bad Boy of all SCAT Rods available for serious horsepower engines:
- H-Beam design is the strongest SCAT rod available
- Perfect for turbocharged, supercharged, and nitrous applications
- Special doweled cap for specific cap-to-rod alignment
- Profiled clearance for stroker applications

Connecting Rod Specs:
- Rod Length: 5.906
- Crank Pin: 1.771
- Wrist Pin: .866
- B.E. Width: 1.038
