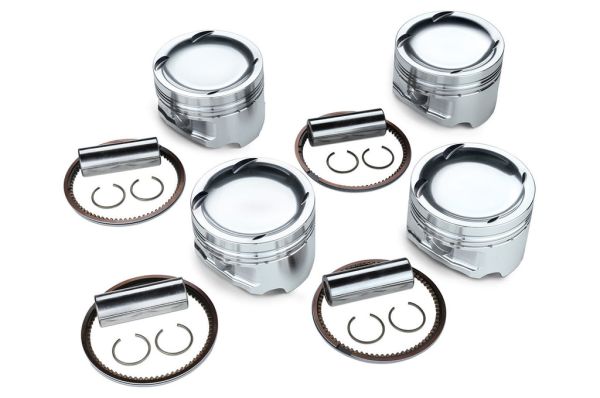

Tomei 2.2L/2.3L Forged Pistons for 4G63 Mitsubishi Evo 4-9

Name: Tomei 2.2L/2.3L Forged Pistons for 4G63 Mitsubishi Evo 4-9
Brand: Tomei
SKU: STM8478
Price: 1008 EUR
Availability: InStock

SKU

STM8478

Skip to the end of the images gallery

Skip to the beginning of the images gallery

-16%

Special Price €1,008.00 was €1,200.00

In stock

Tomei 86mm Pistons (TA201A-MT01B)|CP 86mm Pistons (TA201A-MT01BP)|Tomei 85.5mm Pistons (TA201A-MT01D)

Categories: Car Brands, Mitsubishi

Special Offers

Details

At the core of the engine, pistons convert combustion gas into power. Choose Tomei or CP pistons with 85.5mm or 86mm bore for the 4G63 Evo 4-9 engine. Exclusive forged material is lightweight, preventing excessive machining and strength reduction. The 3D profile ensures smooth movement with optimal clearance and an oval barrel shape for thermal expansion.

Vehicle Fitment:
1992-2006 Mitsubishi Evolution IV-IX
(Evo 4/5/6/7/8/9 with 4G63 engine)

2.2L/2.3L 4G63	86mm Tomei Pistons (TA202A-MT01A)	86mm CP Pistons (TA202A-MT01AP)	85.50mm Tomei Pistons (TA202A-MT01B)
BORE (mm):	86.00 (OEM +1.0)	86.00 (OEM +1.0)	85.50 (OEM +0.5)
Pin Diameter (mm):	22	22	22
Pin Length (mm):	60	60	60
Circlip Inner Diameter (mm):	22	22	22
Compression Height (mm):	31.65 (STOCK -3.35)	31.65 (STOCK -3.35)	31.65 (STOCK -3.35)
Piston Volume (cc):	-19.5	-19.6	-19.5
Piston Weight (g):	328.7	335.1	322.4
Total Weight (g):	450.2	460.1	443.9
Top Ring (mm）:	1.20 x 3.05	1.20 x 2.95	1.20 x 3.05
Second Ring (mm）:	1.20 x 3.70	1.20 x 2.95	1.20 x 3.70
Oil Ring (mm）:	2.50 x 2.85	2.00 x 2.60	2.50 x 2.85
Piston Material:	A4032	A2618	A4032
