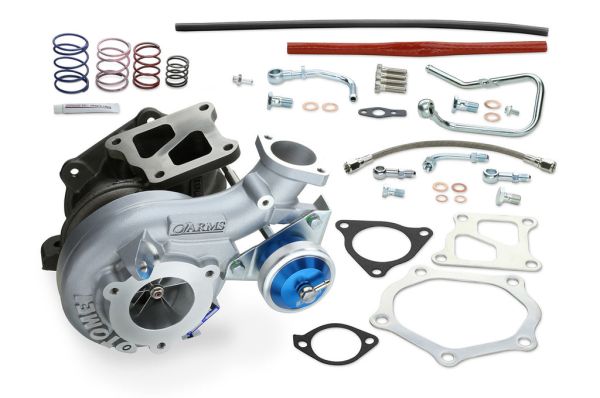

Tomei Ball Bearing Turbocharger ARMS BX8280 for Evo X (TB403A-MT02A)

SKU
STM8521
-16%
Special Price €1,496.00 was €1,780.00
In stock

The Tomei ball bearing turbo for the Evo X features a CNC billet compressor wheel made from aerospace-grade materials, with thinner blades for improved airflow and turbo spool, supporting approximately 450HP. The multi-rate billet actuator boasts a large capacity and reinforced forged billet construction, including six springs for precise boost adjustments. The swivel-type nipple offers greater flexibility in hose routing, and up to three springs can be combined to achieve the perfect setup.

Vehicle Fitment:
2008-2015 Mitsubishi Lancer Evolution X
(4B11/ CZ4A)

Compressor Wheel: Turbine Wheel:
ⒶIND(mm) 61.4 ⒸEXD(mm) 58.8
ⒷEXD(mm) 82 ⒹIND(mm) 67.0
Trim 56 Trim 77
Blades 6/6 Blades 9
Material A2618 Material K418
Production CNC Billet Production Cast


Compressor Housing: Turbine Housing:
IND(mm) 62.4 IND(mm) 4B11
EXD(mm) 40.2 IND(mm) 4B11
A/R 0.51 A/R 0.89


More Info:
CNC BILLET COMPRESSOR WHEEL
A significant improvement over traditional cast compressor wheels, these lightweight and highly durable compressor wheels are machined from aerospace-grade materials. They feature thinner blades with a larger surface area for greatly enhanced airflow and turbo spool.

MULTI RATE BILLET ACTUATOR
The large-capacity, reinforced forged billet construction includes six springs for precise boost adjustments. The swivel-type nipple offers greater flexibility when routing hoses. You can combine up to three springs to achieve the perfect setup. (Six springs included)



SKUSTM8521
SellerSTM-Tuned
ManufacturerTomei
OEM NumberTOM-TB403A-MT02A
