Weldon In-Tank Fuel Pump (FL1100-A)

The Weldon Racing FL1100-A fuel pump is an electric pump rated for 800-1400 HP for naturally aspirated or carbureted engines running gasoline. Can be mounted horizontal or vertically in fuel tank or cell. Self-priming pump with a quiet, consistent flow. The pump components are 100% metallic with billet end caps and 304 brushed stainless steel housing.

Vehicle Fitment:
• Universal Product
• Compatible with gasoline ONLY
• Not compatible with alcohol, E85/ethanol based fuels

For Fuel Injected Engines:
• 1400 HP @ 50 PSI (Naturally Aspirated)
• 1000 HP at 80 PSI (Boosted)

For Carbureted Engines:
• 1600 HP @ 7 PSI (Naturally Aspirated)
• 1500 HP @ 30 PSI (Boosted)

Specs:
• Can be mounted horizontal or vertically in fuel tank or cell
• A sleek, drop in replacement for any in-tank pump utilizing a 10-bolt pattern on a 4” bolt circle
• Extremely quiet
• Precise, consistent fuel delivery
• Self priming
• Continuous duty pump with extremely low current draw
• All internal pump components are 100% metallic
• MIL-SPEC anodized, billet aluminum flanged housing for added strength for extreme applications
• MIL-SPEC clear anodized billet end cap
• For carbureted or injected engines
• -10 inlet and outlet o-ring ports
• Weighs 6 pounds

Filtration Recommendations:
•
•

Compatible Fluids:
• Gasoline

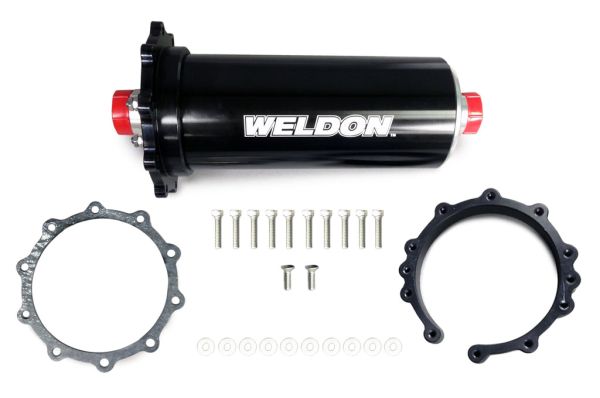

Purchase Includes:
(1) Fuel Pump
(1) Gasket
(1) In-Tank Mounting Ring
(2) Short Bolts
(10) Long Bolts
(10) Washers
