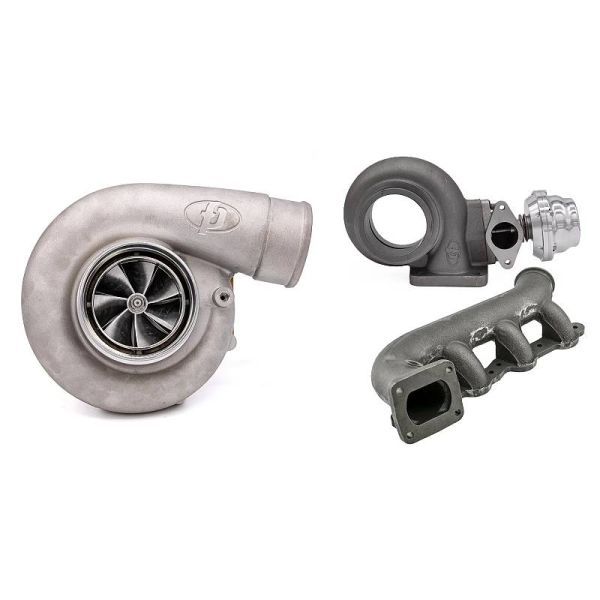

FP7875 DIY LS Race Turbo Bundle - 900HP+

Turbo LS 4.8/5.3/6.0 DIY FP7875 Performance Package by Forced Performance, Tial Wastegate, LS CAST Turbo Manifold, 900HP+

This is a great all in one solution for an affordable turbo LS setup! This has been run with the integrated F38 on FPs shop truck for months from 7-16psi with ZERO control issues. These will offer a CNC wastegate port hole for you to use for optimal flow. Just bolt the gate on and you are in business.

• FP7875 Race Turbocharger with integrated F38 Flange .81 or .96 A/R
• TiAL F38 Wastegate/6psi spring
• FP LS Log Manifold
• 1/8npt-4an Oil Inlet Fitting
• Stainless Downpipe Flange and Stainless Downpipe Clamp
• CHRA - FP Journal Bearing

• Flow rating - 110lb/min
• CW Measurements - 78MM Inducer
• TW Measurements - 75MM Exducer
• Compressor Housing - 4' Inlet and 3' Outlet
• Turbine Housing - T4 Open .81 or .96 A/R
• Turbine Outlet Flange - 3 5/8' V-Band discharge
• CHRA - FP Journal Bearing

This LS Turbo package is offered in two different T4 turbine housings, a .81 A/R and a .96 A/R open. We recommend the .81 for smaller motors or twin setups, while the .96 responds very well on a larger motor such as a 5.3 or such applications that use a larger cam/converter than stock.
