Garrett G25-550 G Series Turbo - T3 .61AR V-Band EWG

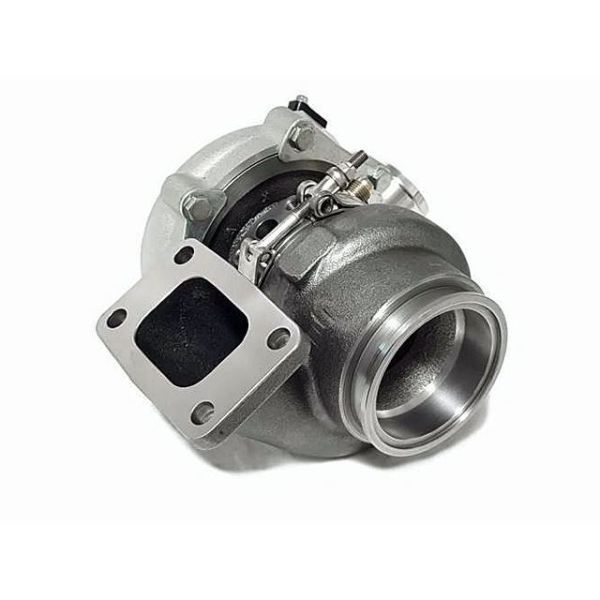

Garrett G25-550 G Series Ball Bearing Turbocharger .61AR T3 V-Band EWG Turbine Housing

'Spools like a 28, Powers like a 30'
In Stock, Shipping Now!

Product Description:
Garrett G-Series G25-550 advanced small frame ball bearing turbocharger with a .61 A/R T3 inlet and v-band outlet turbine housing. 550HP from a small frame package!
Ultra High Flow G-Series Compressor Wheel
Revolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
Includes -4AN oil feed fitting and -6AN coolant/water fittings

Product Specifications:
Compressor Wheel Inducer: 48mm
Compressor Wheel Exducer: 60mm
Compressor Wheel Trim: 65
Compressor Housing Inlet: 3 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .70
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 49mm
Turbine Wheel Trim: 84
Includes Oil Feed (1mm) Restrictor Fitting to -4AN
Includes two Coolant Fittings to -6AN

Garrett Part Number:
858161-5002S (Supercore),ATP-HSG-642
