Инжекторы Bosch EV14 800cc (DeatschWerks) для 1.8L, комплект 4 шт, E85, долговечность, гарантия 3 года

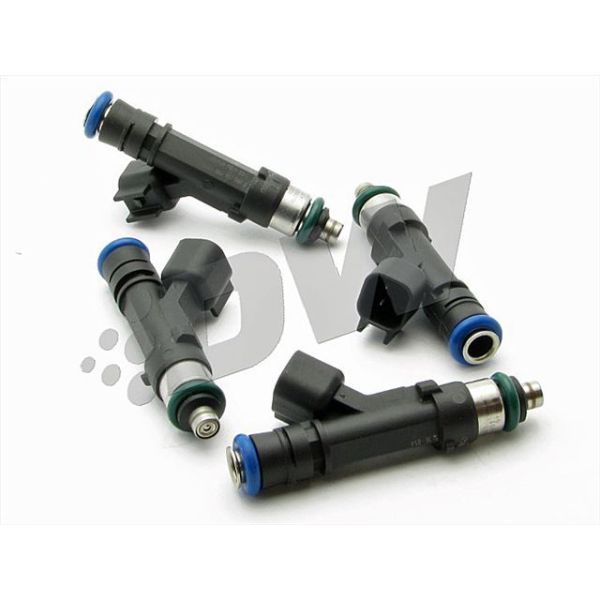

Set of 4 78lb (800cc) injectors for universal applications (14mm fuel rail bore)

You may need to purchase electrical connectors for these injectors.

All Bosch injectors feature the following:

E85 compatibility
Flow rates and set balancing in-house by DeatschWerks
Flow balanced to within 1-2% (flow report included)
Excellent spray pattern and atomization for optimized idle and tuning
Technical assistance and tuning data available via phone or email
3-year comprehensive warranty

Injector Data

Fuel Pressure Range - 40-70 psi
Minimum Pulse Width - 1.0 ms
Maximum Duty Cycle - 93%
Coil Impedance - 12.4 ohm
Injector Type - Bosch EV14 (long)
Connector Type - US-car

Nominal Static Flow Rate
PSI &gt, 43 58 70 80 90 100
cc/min 806 993 1086 1175 1258 1317
lb/hr 76.8 94.6 103.4 111.9 119.8 125.4

Please note: Flow rates listed are the nominal (normal minimum) rates for this injector part number. All sets are flow balanced. For actual flow rates of your set, please refer to the flow report that will accompany your order.

Offset in Milliseconds (Pressure vs Voltage)
PSI &gt,
VOLTS v 43 58 70 80 90 100
8 3.11 3.55 3.88 4.20 4.64 4.86
9 2.71 3.10 3.37 3.77 4.34 4.55
10 2.35 2.69 2.91 3.38 4.05 4.25
11 2.02 2.32 2.50 3.02 3.78 3.96
12 1.73 1.98 2.14 2.69 3.52 3.69
13 1.47 1.69 1.82 2.40 3.27 3.43
14 1.24 1.43 1.55 2.14 3.04 3.19
15 1.05 1.21 1.32 1.92 2.82 2.96
16 0.89 1.03 1.15 1.73 2.61 2.74
